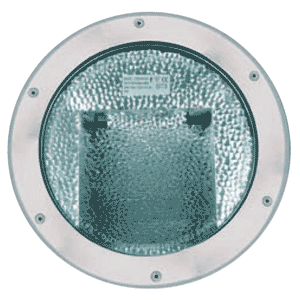

A series of ground buried floodlights that meet the international requirements needed in outdoor applications. Astra outdoor lighting is available with symmetric and asymmetric light output. In addition to that, various light sources can be used: Dichroic, metal halide and led lamps.
Astra outdoor lighting is generally used:
-In gardens; can be placed both in front of a tree or a plantation for it to appear illuminated or can be placed behind it, in order to reflect its shadow.
-In paths in parks and gardens or walk ways in order to light up a passage.
-In front of a building in order to loght up its facade.
-Around swimming pools to light up borders.-
The spot is made of die-cast aluminum, powder coated with pretreatment for outdoor use.
The trim is made of 4mm thick stainless steel and the cover of glass. The gasket is made from silicone rubber. The tempered protection glass of 10mm thick can support a weight of 2000Kg.
| |
lamps |
lamp holder |
IP |
D |
H |
| OL 7705 asymmetrical light |
1x50W |
Rx7S |
67 |
300 |
320 |
| Box |
|
|
|
300 |
355 |
|
| |
lamps |
lamp holder |
IP |
D |
H |
| OL 7706 symmetrical light |
1x50W |
Rx7S |
67 |
300 |
320 |
| Box |
|
|
|
300 |
355 |
|
| |
|
| |
lamps |
lamp holder |
IP |
D |
H |
| OL 7707 |
1x50W |
GU 5.3 |
67 |
142 |
129 |
| Box |
|
|
|
135 |
150 |
|
| |
lamps |
IP |
L |
W |
H |
| OL 7708 |
1.5W Led |
67 |
100 |
100 |
68 |
| |
|
|
|
D |
|
| Box |
|
|
|
95 |
110 |
|
| |
