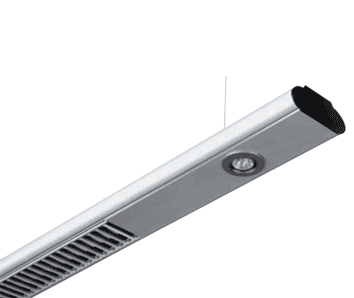

Astraline belongs to a family of modular luminaires for continuous line installation. Prestigious, aesthetic and elegant, this luminaire can be easily integrated into several architectural surfaces. A marriage can be actualised between the ancient and the modern style reaching out to the futuristic.
Several types of lamps can be easily integrated into this linear system and several other advantages arise from this versatile type of luminaires such as :
Modular system in three dimensions, Integration of adjustable and fixed lighting sources, Integration of sound speakers and smoke detector, Ceiling mounted or in suspension, Possibility of passing cables conspicuously, Possibility of installing modules of lengths up to 6m, Suspended decorative fluorescent fitting with a decorative and aesthetic outlook.
Body made of 2.2mm thick extruded aluminum to be suspended with the aid of stainless steel wires.
A back mirror is placed behind the lamps to increase the efficiency of the luminaire along with a white metal sheet lamella louvre screen combining attractive appearance with good functionnal properties.
Due to its modularity and wide range of accessories, Astraline can be assembled in different forms following the architect's request.
Astraline is available in black and white colors. On request it can be delivered in metallic grey or with integral dichroic lamps. These fixtures are recommended in the following locations: Executive offices, Showrooms, Clinics, Computer rooms, Shops.
| |
lamps |
L |
W |
H |
 |
| AL 158 OP |
1x58W |
2050 |
150 |
65 |
| AL 218 OP |
2x18W |
1000 |
150 |
65 |
| AL 236 OP |
2x36W |
1700 |
150 |
65 |
| AL 258 OP |
2x58W |
2050 |
150 |
65 |
| AL 224 OP T5 |
2x24W |
589 |
150 |
65 |
| AL 254 OP T5 |
2x54W |
1189 |
150 |
65 |
| AL 214 OP T5 |
2x14W |
589 |
150 |
65 |
| AL 221 OP T5 |
2x21W |
889 |
150 |
65 |
| AL 228 OP T5 |
2x28W |
1189 |
150 |
65 |
| AL 235 OP T5 |
2x35W |
1189 |
150 |
65 |
|
