ARL

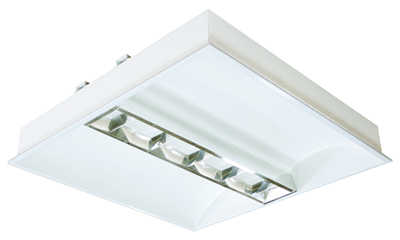

Astra Led Recessed 60

Highly efficient lighting fitting produced with Double α HS technology in association with high power Led from Silicon Valley in the US. Body made from enameled steel sheet and painted with epoxy polyester powder coating. Reflector made from high quality pure aluminum, with polycarbonate diffuser to meet CAT 2 requirement and IP 44 protection.


Download ARL Technical sheets
ARL
English
French
Technical Data (ARL 4 x 8)
Notice (ARL 4 x 8)

Specifications

Led working temperature 60 degree
Available CRI 80% and 97%

Note: CRI-color rendering index

This fitting is designed to be installed in Gypsum board false ceiling or Lay on T bar.
Special dimensions are available on request.

These efficients luminaires are intended for those following applications:

Offices
Museum
School
Office buildings
Governmental Buildings
Showrooms
Malls


Led power
Dimension Nominal
H (mm)
ALR 4 x 4W
16 Watts
59.5 x 59.5 or 60 x 60 Clip in
110
ALR 3 x 8W
24 Watts
59.5 x 59.5 or 60 x 60 Clip in
110
ALR 4 x 8W
32 Watts
59.5 x 59.5 or 60 x 60 Clip in
110

Replacement table

This table shows what luminaries this double α fitting will replace


Led power
Traditional lamps
ALR 4 x 4W
4 x 4W (16 Watts)
4 x 14W (56 Watts) T5
4 x 18W (72 Watts) T8
ALR 3 x 8W
3 x 8W (24 Watts)
3 x 36W (108 Watts) T8
3 x 28W (84 Watts) T5
2 x 54W (108 Watts) T5
ALR 4 x 8W
4 x 8W (32 Watts)
4 x 36W (144 Watts) T8
4 x 28W (112 Watts) T5
3 x 54W (162 Watts) T5

Available lighting color

Warm White 2700-3500K
Natural White 4000-4500K
Cool White 5000-6000K

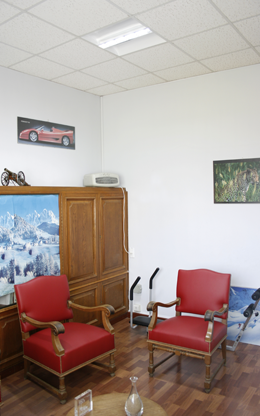

Examples of applications
