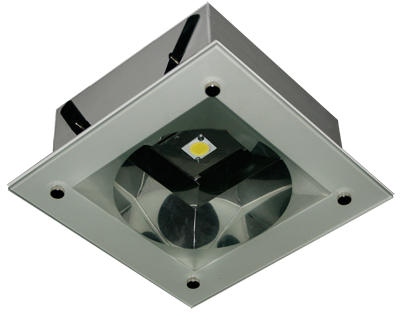

ASR

This new series of recessed fitting for Light Emitted Diode (LED) is designed entirely in Astra's R&D department. The Aesthetic Square Shape is designed to meet the new trend of compact dimensions and cubical forms required by interior designers and architects nowadays.

New high output led with double α technology ® is integrated in the ASR led fitting








Download ASR Technical sheets
ASR
English
French
Technical Data (ASR 1 x 20)
Notice (ASR 1 x 20)
NASR1x20F
Measurement Report (ASR 1 x 20)

Specifications

-High lumen output up to 120 lumens per watts
-life span up to 100000 hours only 2% decrease after 50000 hours
-high security with low voltage input
-All fitting are available with warm white 3000K or cool white 4000K

Body is made from sheet steel painted with electrostatic white epoxy polyester powder equipped either with a Cat2 anodized reflector (DM) or with a normal bright aluminum (SN). This revolutionary fitting is manufactured according to the European Norms.

LED is tested according to ISM-ROHS-Metals-XRF. This luminaire is covered by a protective glass for aesthetic and functional purposes and is intended for the intensive use in the following locations:
- Showrooms
- Restaurants
- Malls
- Banks
- Conference Rooms
- Receptions
- Living rooms


W (mm)
H (mm)
W1 (mm)
ASR 4
95
71
75
ASR 8-12
205
100
170
ASR 20-25
230
110
200
ASR 50
350
95
300



Replacement table

This table shows what luminaries this double α fitting will replace


Led power
Traditional lamps
ASR 4
1 x 4W (4 Watts)
1x 50W (50 Watts) dichroic
ASR 8
1 x 8W (8 Watts)
2 x 13W (26 Watts) Down light
ASR 12
1 x 12W (12 Watts)
2 x 26W (52 Watts) Fluorescent
ASR 20
1 x 20W (20 Watts)
2 x 32 Watts Metal halide
1 x 70 Watts Metal halide
ASR 25
1 x 25W (25 Watts)
1 x 50 Watts Metal halide
ASR 50
1 x 50W (50 Watts)
1 x 250 Watts Metal halide

Available lighting color

Warm White 2700-3500K
Natural White 4000-4500K
Cool White 5000-6000K



How to Open an IES File:
The easiest way to open an IES file is to double-click on it and let your PC decide which default application should open the file. If no program opens the IES file then you need an application that can view IES files. You can download this application from dialux.com.

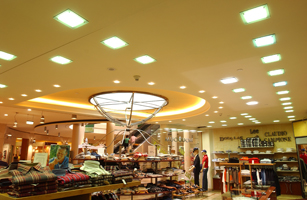

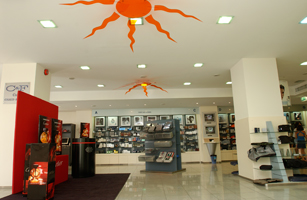

Examples of applications
