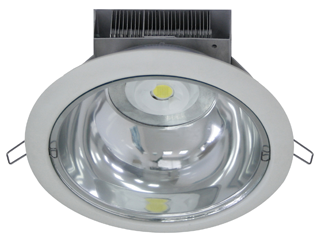

Astra Round Recessed LED

Astra Round Recessed LED: ARR is the most advanced lighting fitting in the market. It is equipped with the high performance Double α heat sink ® technology. It has the following advantages vs. all existing PL fluorescent fittings:
- 90% economy (comparing to traditional bulbs, fluorescent lamps.)
- The CRI (Color Rendering Index) is up to 90%.
- Up to 110 lumens per Watts, with a life span up to 50 000 hours.
- 5 years warranty for the diode, with no maintenance needed during life time.

- 100% Green technology: nature friendly product, no pollution nor harmful material used in production processes, plus an extremely low electrical consumption with no hazardous materials production in the recycling process.
- Its frame is made of die cast aluminum, electro-statically painted in white or gray.
- Its reflector is made of high gloss aluminum to meet CAT 2 requirements, with high lighting uniformity.
- This fitting can be equipped with an optional and aesthetic Glass Diffuser. LED technologies do not need any filter= No UV emitted rays.
- The round shape is commonly used in most applications by architects and engineers.
- This innovative lighting fitting is produced according to European norms EN 60598-2-2:1996/A1:1997 and is CE marked.
- The LED is made with Gallium Nitride on Silicon (GaN-on-Si) advanced material.
- Its voltage: 100-300 Volts /50-60 Hz.

Applications:

- Malls
- Shops
- Offices
- Halls
- Showrooms
- Schools
- Kitchens
- Restaurants
- Reception Spaces
- Conference Rooms
- Sports Facilities
- Public Facilities
- Movie Theaters...




Download IES Photometric file


>> ASTRA ARR 1x12W

>> ASTRA ARR 1x30W













How to Open an IES File:
The easiest way to open an IES file is to double-click on it and let your PC decide which default application should open the file. If no program opens the IES file then you need an application that can view IES files. You can download this application from dialux.com.

Replacement table


Led power
Traditional lamps
ARR 8
1 x 8W (8 Watts)
2 x 13W (26 Watts) Fluorescent
ARR 12
1 x 12W (12 Watts)
2 x 26W (52 Watts) Fluorescent
ARR 20
1 x 20W (20 Watts)
2 x 32W (64 Watts) Fluorescent
1 x 70 Watts Metal halide
ARR 25
1 x 25W (25 Watts)
150 Watts Metal halide



Available Lighting Color

Warm White 2700-3500K
Natural White 4000-4500K
Cool White 5000-6000K
