MLC LED    (IP 54)

Multiline compact has been specially designed for architects and interior designers to meet their requirements. Simple and aesthetic, this modular fitting can be used surface, recessed or suspended with stainless steel wires. The body is made of extruded anodized aluminum and could be painted in grey or white.

Available lighting color

Warm White 2700-3500K
Natural White 4000-4500K
Cool White 5000-6000K



These efficients luminaires are intended for those following applications:
Shops
Malls
Conference rooms
Living rooms
Restaurants
Museums

Note: MLC dust proof IP 54 can be modified, white painted to be used in dusty and public area.

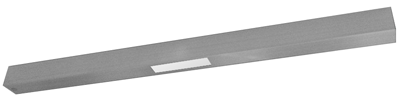

Front view



Translucent IP 54 Wide angle diffuser



Side view
Download MLC LED Technical sheets
MLC LED - IP 54
English
French
Technical Data (MLC LED -IP 54)
- - - - - - - - - - - - - - -
Notice (MLC LED -IP 54)
- - - - - - - - - - - - - - -
Measurement Report (MLC LED -IP 54)
- - - - - - - - - - - - - - -
ULD files for Dialux (MLC LED -IP 54)
- - - - - - - - - - - - - - -

Specifications


Led power
C.C. LED Driver IP 66 input voltage
Current

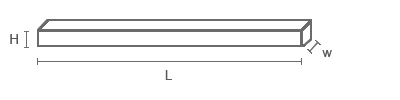

L
W
H
MLC 1 x 8W
1 x 8W (8 Watts)
100-277V 50/60Hz
700 mA
60 cm
6 cm
6 cm
MLC 1 x 12W
1 x 12W (12 Watts)
100-277V 50/60Hz
1000 mA
90 cm
6 cm
6 cm
MLC 2 x 8W
2 x 8W (16 Watts)
100-277V 50/60Hz
700 mA
100 cm
6 cm
6 cm
MLC 2 x 12W
2 x 12W (24 Watts)
100-277V 50/60Hz
1000 mA
120 cm
6 cm
6 cm

*For warm white the Amperage increase

Replacement table


Led power
Traditional lamps
MLC 1 x 8W
1 x 8W (8 Watts)
1 x 26W (26 Watts) CFL
MLC 1 x 12W
1 x 12W (12 Watts)
1 x 36W (36 Watts) T8
MLC 2 x 8W
2 x 8W (16 Watts)
2 x 26W (52 Watts) CFL
MLC 2 x 12W
2 x 12W (24 Watts)
2 x 36W (72 Watts) T8

*All Astra LED are two years warranty.
