Astra Ultimate Series

This new generation of lighting fitting with double Alfa heat sink inside, has been designed to replace the dichroic halogen lamps, and to cut drastically the electrical consumption by '10'
The Avant gardiste designs include a deep virtual lighting source,for a relaxing atmosphere
The dimensions are very compact in order to fit and replace the usual dichroic fittings.
The light color temperature can be chosen from 2800k up to 7000k.
CRI (Color Rendering Index) up to 98% for museum and decorative purpose even in white color.
Double Alfa heat sink ® black matt finish is installed on top of the fitting.
Available colors are white or metallic grey (black on request).
Body is made from die cast aluminum painted with electrostatic powder coating.
This innovative lighting fitting is produced according to the European norm EN 60598 and CE marked.
The LED is made with indium gallium advanced material 220-240 Volts-110 lumens per watts
Nominal power (4 Watts/50-60 Hz).

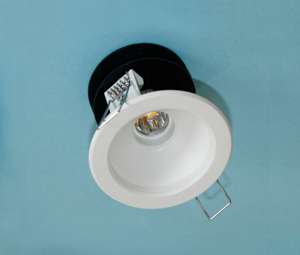

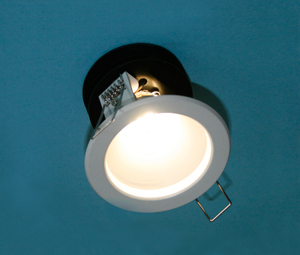

AUS-1

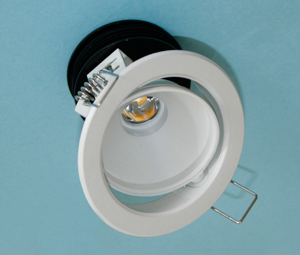

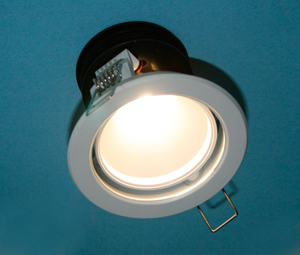

AUS-D (Dirigible)



Download AUS Technical sheets
AUS
English
French
Technical Data
- - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - -
Notice
- - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - -
Measurement Report
- - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - -

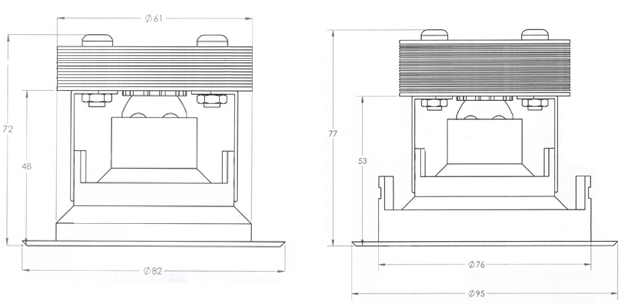

Dimensions

AUS-1
AUS-D (Dirigible)

Applications

The installation of this plug and play product do not need any tools for installation.

- Malls
- Shops
- Offices
- Halls
- Showrooms
- Schools
- Kitchens
- Restaurants
- Reception Spaces
- Conference Rooms
- Sports Facilities
- Public Facilities
- Movie Theaters

Replacement table
Nominal LED power
Lumen output
Lamp color
Replacement
AUS-1 400
1 x 4W (4 Watts)
400 Lm
5000 K
50 W dichroic
AUS-1 400
1 x 6W (6 Watts)
400 Lm
3000 K
50 W dichroic
AUS-1 525
1 x 6W (6 Watts)
525 Lm
3000 K
35 W Metal halide
AUS-1 700*
1 x 6W (6 Watts)
700 Lm
5600 K
35 W Metal halide
AUS-1 1000*
1 x 10W (10 Watts)
1000 Lm
5600 K
70 W Metal halide

AUS-D (Dirigible) 400
1 x 4W (4 Watts)
400 Lm
5000 K
50 W dichroic
AUS-D (Dirigible) 400
1 x 6W (6 Watts)
400 Lm
3000 K
50 W dichroic
AUS-D (Dirigible) 525
1 x 6W (6 Watts)
525 Lm
3000 K
35 W Metal halide
AUS-D (Dirigible) 700*
1 x 6W (6 Watts)
700 Lm
5600 K
35 W Metal halide
AUS-D (Dirigible) 1000*
1 x 10W (10 Watts)
1000 Lm
5600 K
70 W Metal halide



Available lighting color

Warm white 2700-3500K
Natural white 4000-4500K
Cool white 5000-6000K

Available beam angles

Narrow Beam 39
Normal Beam 70
Wide Beam 120
