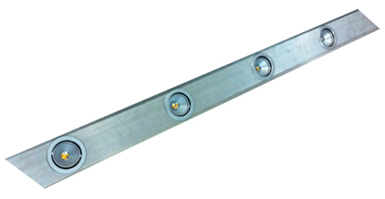

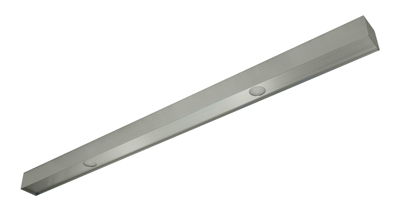

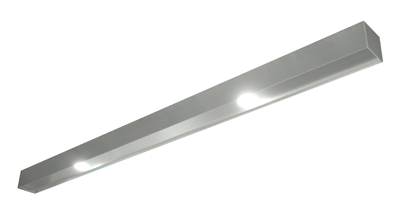

The Multiline series has been specially created for architects and interior designers. Simple and modern, Multiline can be installed, recessed (trimless type) or surface mounted. It can also be suspended with the aid of stainless steel wires. The body is made of extruded anodized aluminum and the finishing is usually brushed aluminum. It can be painted in grey or white on request. Generally used in Offices, Shops, Malls, Showrooms, Conference rooms, Receptions, Banks, Living rooms.Modular ML assembly may be manufactured according to architect drawings.
Specifications
This linear luminaries use multiple 4 watts led assembled in line according to double α HS ® technology.
Led power
W (mm)
W1 (mm)
H (mm)
ML 4 x 4W
16 W
111
1200
101.5
ML 5 x 4W
20 W
111
1200
101.5
ML 1 x 8W
8 W
111
600
101.5
ML 1 x 12W
12 W
111
600
101.5
ML 1 x 20W
20 W
111
600
101.5
Replacement table
This table shows what luminaries this double α fitting will replace
Led power
Traditional lamps
ML 4 x 4W
16 W
4 x 18W (72 Watts) Fluorescent
ML 5 x 4W
20W
2 x 36W (72 Watts) Fluorescent
ML 1 x 8W
8W
2 x 18W (36 Watts) PL Fluorescent
ML 1 x 12W
12W
2 x 26W (52 Watts) PL Fluorescent
ML 1 x 20W
20W
1 x 70W (70 Watts) Metal Halide
*Dimensions can change according to architect drawings
Available lighting color
Warm White 2700-3500K
Natural White 4000-4500K
Cool White 5000-6000K
