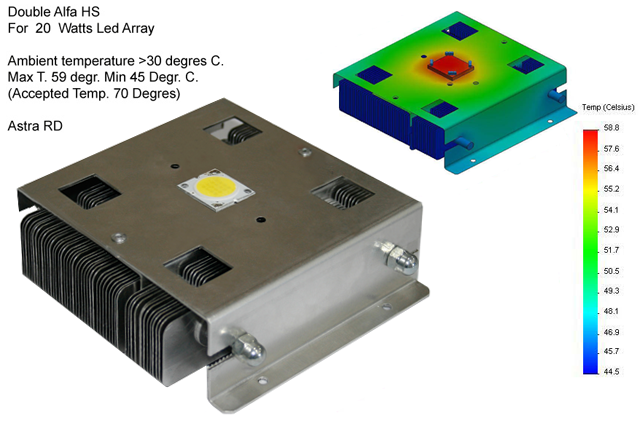

Double α heat sink ® with wires ready to be plugged

Specifications

Double α heat sink ® is the most advanced technology in heat transfer engineering, designed for the next generation of high power LED.
Double α heat sink ® with Bridgelux LED inside is used in the luminaire industry to optimize temperature and increase lumens output in all extreme ambient temperature conditions from -30 up to +50 degrees.  It is designed for an ideal working temperature that should not exceed 70 degrees on Tc point.
Double α heat sink ® can be adapted to all shapes of lighting fittings. It is the key for reliability and life time satisfaction in SSL engineering.

*Double α heat sink ® with wires, plug and play.

Double α heat sink with one high output led

Item
Led power
H
W
W1
Exchange Heat Surface Area
No. of Fins
0101 C 2002 01
20 Watts Cool
12
12
4
2750 cm2
35
0102 C 1202 01
12 Watts Cool
12
12
4
2000 cm2
25
0102 W 1202 01
12 Watts Warm
12
12
4
2000 cm2
25
0103 C 2002 01
20 Watts Cool
10
10
4
2500 cm2
35
0103 W 2002 01
20 Watts Warm
10
10
4
2500 cm2
35
0104 C 0802 01
8 Watts Cool
10
10
4
1750 cm2
25
0104 W 0802 01
8 Watts Warm
10
10
4
1750 cm2
25



Double α heat sink with multiple high output led

Item
Led power
H
W
W1
Exchange Heat Surface Area
No. of Fins
0111 C 0402 05
5 x 4W (20 Watts) Cool
55
6
4
3800 cm2
10
0111 W 0402 05
5 x 4W (20 Watts) Warm
55
6
4
3800 cm2
10
0112 C 0402 04
4 x 4W (16 Watts) Cool
55
6
4
3000 cm2
8
0112 W 0402 04
4 x 4W (16 Watts) Warm
55
6
4
3000 cm2
8
0113 C 0802 04
4 x 8W (32 Watts) Cool
55
6
4
4500 cm2
16
0113 W 0802 04
4 x 8W (32 Watts) Warm
55
6
4
4500 cm2
16
