AB-SN 2801

AB-SB 2802

AB-DB 2803

AB-DM 2804

Black Surface Luminaire

A range of black decorative surface mounted fittings for general use in the following locations: Banks, Offices , Hospitals, Shops, Clinics, Lobbys, Computer rooms
Housing made of sheet steel painted with one coat of epoxy-polyester powder without the superposition of two coatings which insures a better quality and durability.
A back mirror is installed behind each lamp to improve the efficiency of the luminaire and supply a more uniform and comfortable lighting distribution.
Louvers of a wide range can be fitted with four springs according to the requirements in the area of application
(Cat 2).
The louver can be lowered and hung from either side without the use of tools.

LOUVER MODEL
code louver alum.material
SN Simple parabolic Normal
DN Double parabolic Normal

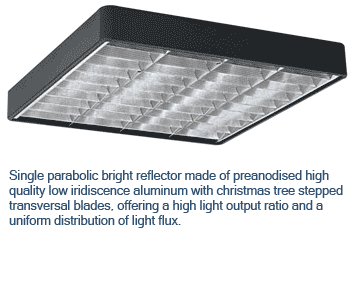

SB (Sapin) stepped Bright anodised
DB Double parabolic Bright anodised
DM Double parabolic Matt anodised

Lighting description


lamps
L
W
H
AB 218
2x18W
634
296
80
AB 418
4x18W
634
630
80
AB 236
2x36W
1235
296
80
AB 436
4x36W
1235
630
80
