Decorative Surface Mounted

Surface mounted decorative fluorescent fitting with aesthetic round corners aimed for the intensive use in:
-Banks
-Hospitals
-Commercial centers
-Reception areas
-Shops
-Schools
Housing made of sheet steel painted electrostatically with white epoxy-polyester powder. Corners are of white injected resin giving an elegant and vivid outlook.
A wide range of louvers can be applied to suit the installation requirements (Cat 2).
This louver is fitted with four springs and can be hung on two for maintenance without the use of tools.

LOUVER MODEL
code louver alumi.material

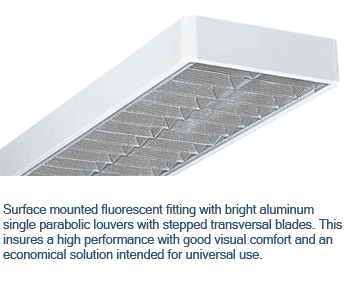

SN Simple parabolic Normal
DN Double parabolic Normal
SB (Sapin) stepped Bright anodised
DB Double parabolic Bright anodised
DM Double parabolic Matt anodised
PR Prismatic
OP Opal

Lighting description


lamps
L
W
H
AP 218
2x18W
634
296
80
AP 418
4x18W
634
630
80
AP 136
1x36W
1235
200
80
AP 236
2x36W
1235
296
80
AP 436
4x36W
1235
630
80
AP 258
2x58W
1535
296
80
