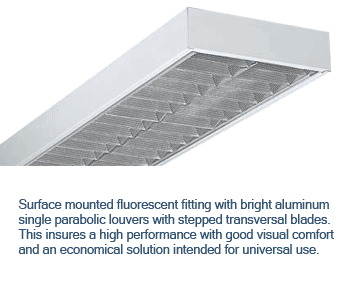

Surface Mounted Luminaire

Surface mounted fluorescent fittings of classical and robust appearance with a high performance / price ratio. Applications:
-Banks
-Hospitals
-Schools
-Gymnasium
-Lobby
-Reception rooms
-Corridors
Body in sheet steel painted white electrostatically with epoxy-polyester powder. Bright and matt-finish louvers can be fitted to this luminaire according to application requirements.
The louver is fitted with four springs and can be hung on two for maintenance without the use of tools.



LOUVER MODEL
code louver alumi.material
SN Simple parabolic Normal
W White Normal
DN Double parabolic Normal
SB (Sapin) stepped Bright anodised
DB Double parabolic Bright anodised
DM Double parabolic Matt anodised
PR Prismatic
OP Opal

White aluminum louver

High quality luminaries produced and tested according to BS-EN 60598 made with enameled steel sheet electro statically painted in white along with its aluminum louvers. This luminary is identical to the AM418SN in all technical aspects.

Lighting description


lamps
L
W
H
AM 218
2x18W
634
296
80
AM 418
4x18W
634
630
80
AM 236
2x36W
1235
296
80
AM 336
3x36W
1235
475
80
AM 436
4x36W
1235
630
80
