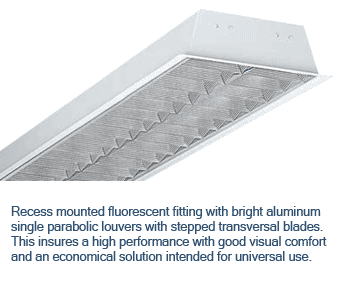

Recessed Luminaire

Functional, high quality recessed luminaires for exposed ceiling grids of 15mm or 24mm T’s. Housing made of electrostatically painted sheet steel with white epoxy-polyester powder paint.
The improved efficiency renders this fixture suitable for the intensive use in:
- Banks
-Office areas
-Commercial areas
-Schools
-Hospitals
This fixture is designed and tested according to international norms requirements where all edges are curved for increased security in installation and maintenance.
The wide range of applicable louvers insures a combination of comfort, uniform lighting and improved efficiency (Cat 2).
Each louver is fixed with four springs and can be lowered and hung from either side for maintenance without tools.

LOUVER MODEL
code louver alum. material
SN Simple parabolic Normal
DN Double parabolic Normal
SB (Sapin) stepped Bright anodised
DB Double parabolic Bright anodised
DM Double parabolic Matt anodised
PR Prismatic
OP Opal

Lighting description


lamps
L
L1
L2
W
W1
W2
H
D
AR 218
2x18W
595
560
613
295
260
205
90
50
AR 318
3x18W
595
560
613
595
560
505
90
50
AR 418
4x18W
595
560
613
595
560
505
90
50
AR 136
1x36W
1195
1170
1123
295
260
205
90
50
AR 236
2x36W
1195
1170
1123
295
260
205
90
50
AR 336
3x36W
1195
1170
1123
595
560
505
90
50
AR 436
4x36W
1195
1170
1123
595
560
505
90
50
